Angle Heads Classic Line

Integral angle heads

The new Classic line of Gerardi angle heads has been designed from a technical base derived from 40 years experience of solving thousands of production problems, finding optimum solutions and always guaranteeing the highest product quality. More than 90 standard angle head types are now offered, designed, built and distributed in more than 50 countries the world over by Gerardi S.p.A., and available with a range of options to complete their application and performance potentials.

The Compact design, along with mentioned specifications, allows: highest performances, high speeds, long tools life.

Identify your Angle Head with our worksheet

ATC series

This range of heads is designed to be used on machining centres and can be automatically tranferred from the tool magazine to the machine spindle and back.

A major feature of the ATC serie is the main input shaft which is integral with the drive taper to ensure maximum rigidity.

MTC series

This is a range of heads for traditional machine tools with flange attachment.

The modular system makes it possible to extend the lenght of the body by additing a spacer.

FEATURES

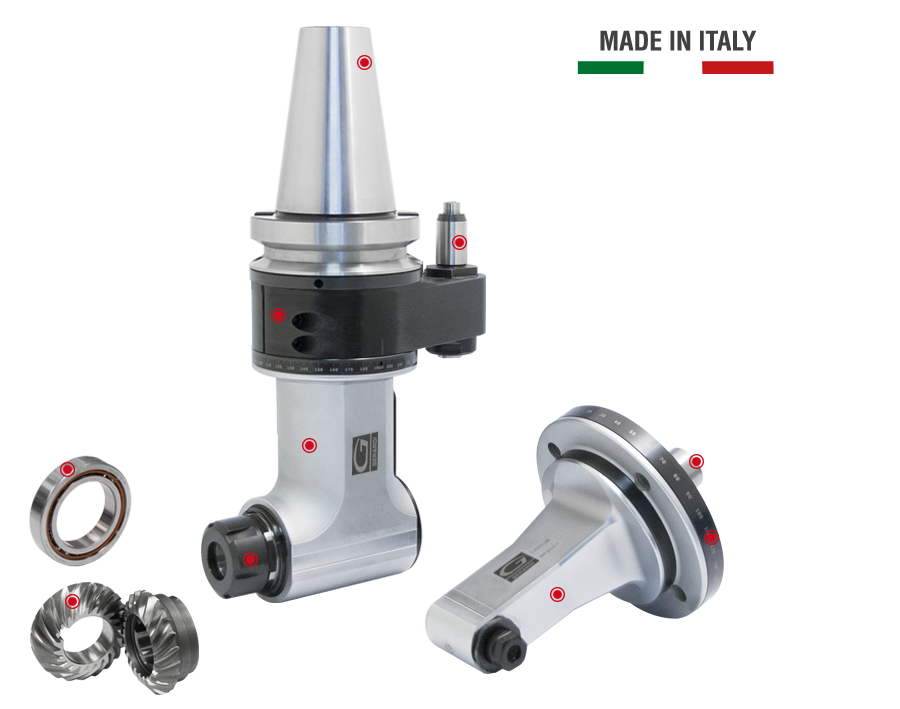

Angle Heads Classic Line 0 1 2 3 4 7 6 0 5 3 8

INTEGRAL CASE HARDENED AND GROUND SHANK AND SHAFT

to ensure maximum rigidity.

POSITIONING PIN WITH COOLANT THROUGH

with automatic release and standard 10bar coolant through the pin.

ANTIROTATION GROUP

ANGULAR HEAD BODY

Treated steel head body with 360° positions and internal air pressure, maximum rigidity and corrosion resistant.

Minimum thermal expansion.

OUTPUTS

  1. ER collet (standard)
  2. Weldon
  3. Shell mill holder
  4. Special

GRADUATED RING

GLEASON GEARS

Gleason computer based calculations for the Gleason cut spiral bevel drive gears with ground teeth in order to guarantee a bigger torque.

BEARINGS

Angular contact preloaded ball bearings of precision class ABEC 9.

100% MADE IN ITALY

Gerardi Classic angle heads have been designed and are manufactured in Italy.

They are covered by 1 year warranty.


Specifications

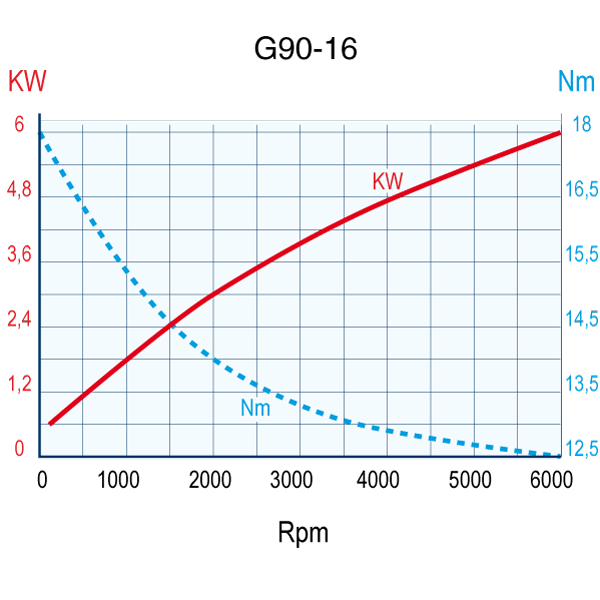

  • ATC/MTC - G90 SERIESATC - G90 SERIES
    Ideal for drilling, milling and tapping at ±90°
  • ATC/MTC - G90L SERIESATC - G90L SERIES
    Long series for machining at deep positions

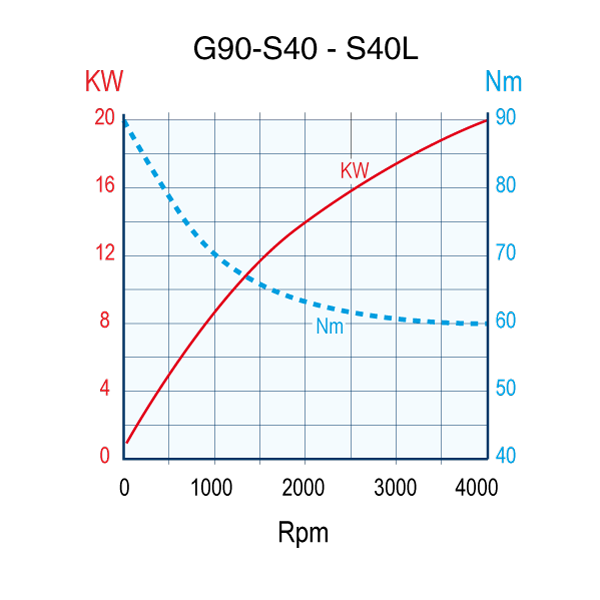

  • ATC/MTC - G90B SERIESATC - G90B SERIES
    With coolant input from positioning Pin and output though the tool

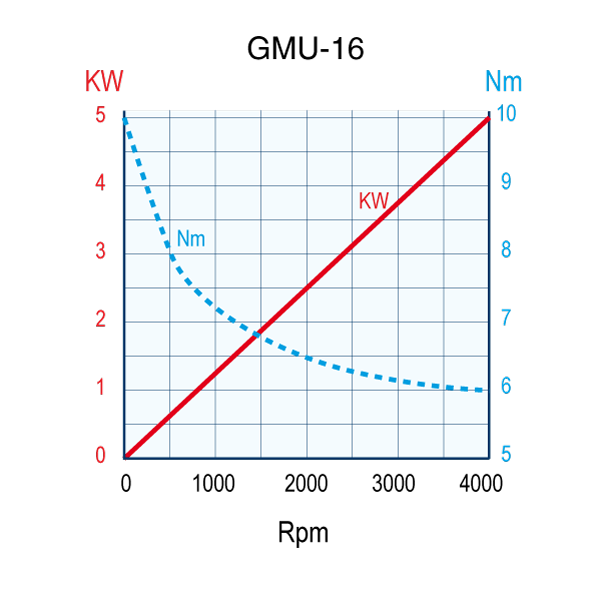

  • ATC/MTC - GMU SERIESATC - GMU SERIES
    Adjustable ouput at 0° to 90° for tilt drilling, milling and tapping
  • MTC G90 seriesMTC G90 series
    Ideal for drilling, milling and tapping at 0° to 90°
  • MTC G90L seriesMTC G90L series
    Long series for machining at deep positions
  • MTC GMU seriesMTC GMU series
    Adjustable output at 0° to 90° for tilt drilling, milling and tapping

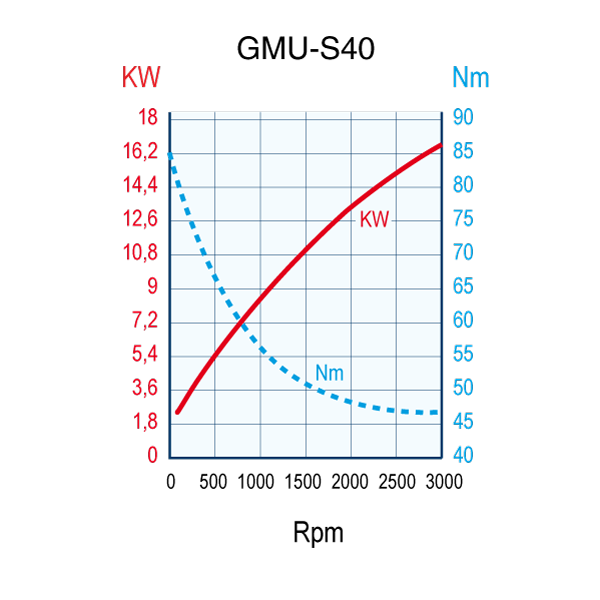

  • MTC GMU S40/S50 seriesMTC GMU S40/S50 series
    Tool output adjustable on 360° with free positioning

VIDEO
  • Angle Head Modular Complete Assembling

ACCESSORIES

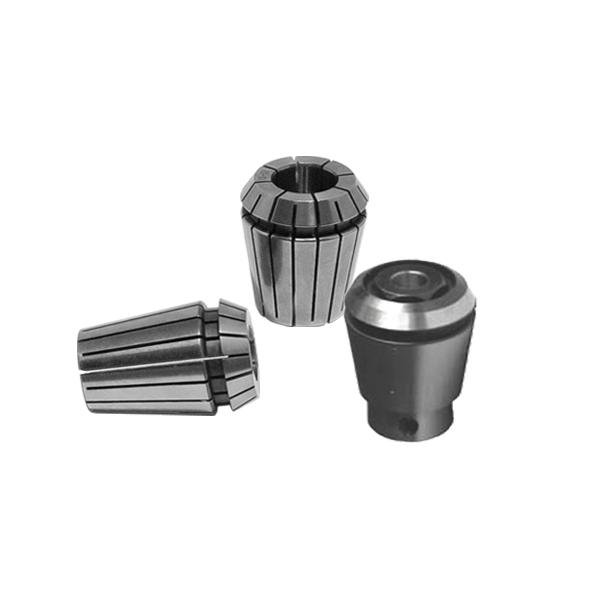

  • ColletsCollets
    ER-DIN 6499 / ET1

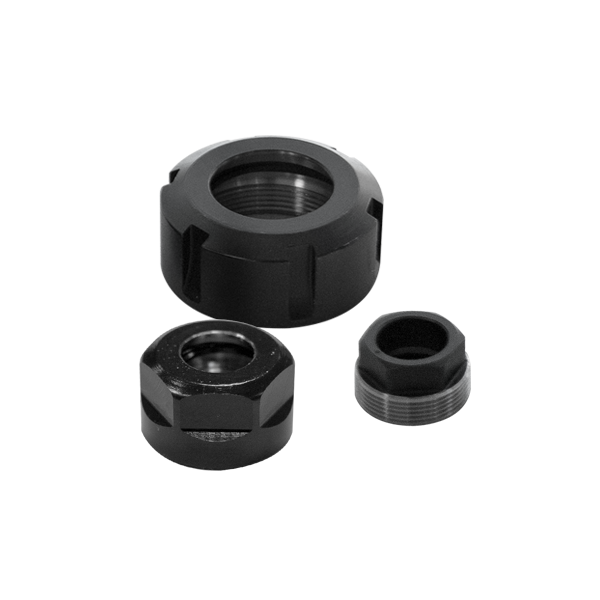

  • NutsNuts
    ER-DIN 6499 / ET1

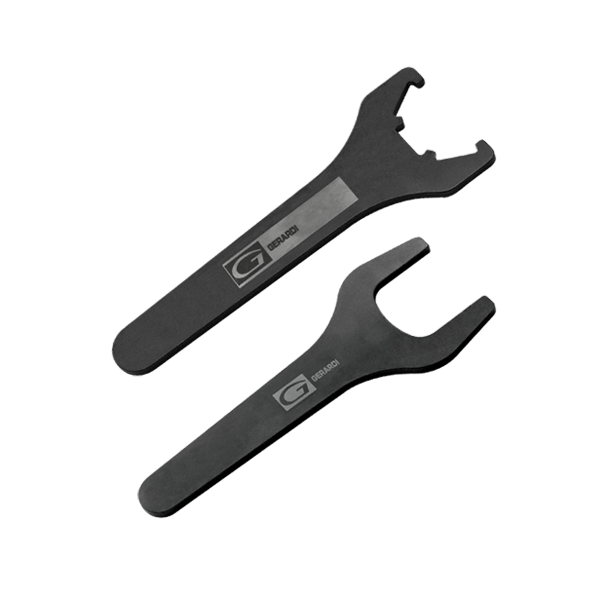

  • WrenchesWrenches
    ES (Exagonal) - STD (Standard)

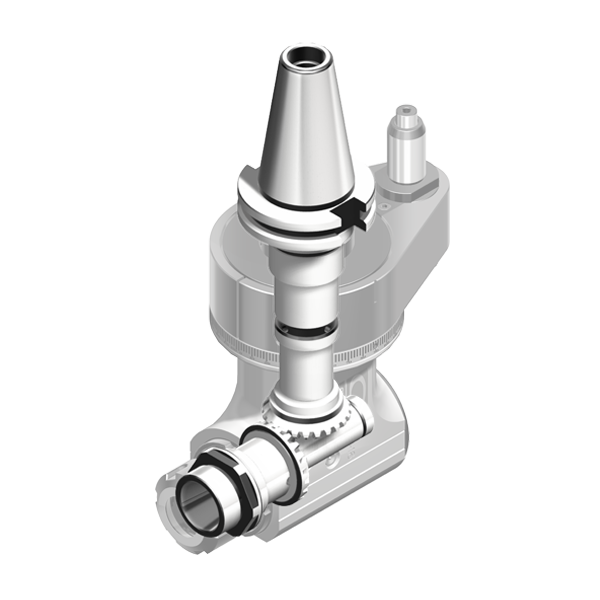

  • Integral shank and shaftIntegral shank and shaft
    Case hardened and ground shank and shaft. Made as one solid piece to increase resistance.

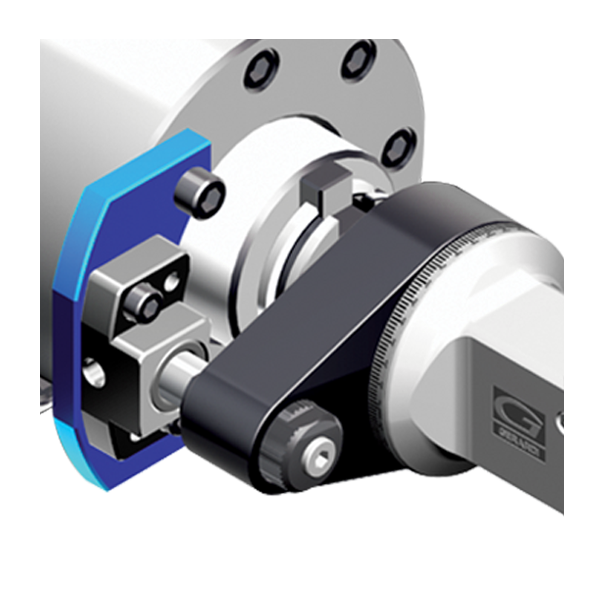

  • Stop block Stop block
    The stop block avoids the rotation of the angle head and ensures perfect stability, high precision positioning and repeatability of the automatic tool change.

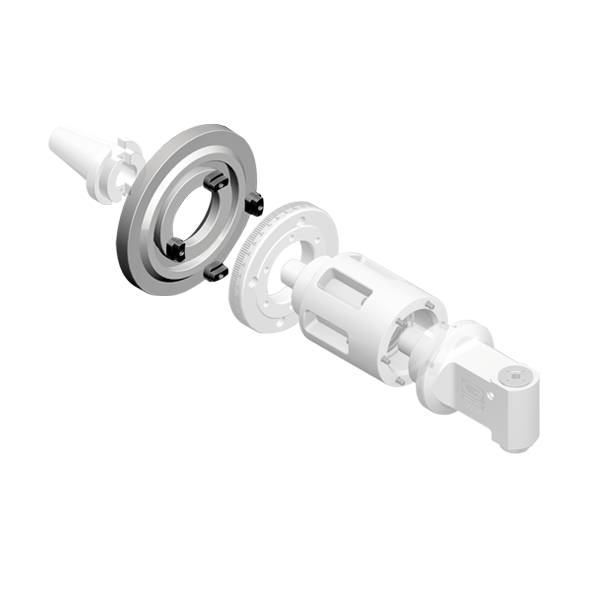

  • Universal flangeUniversal flange
    Used for the interface between the MTC angle head and the machine spindle

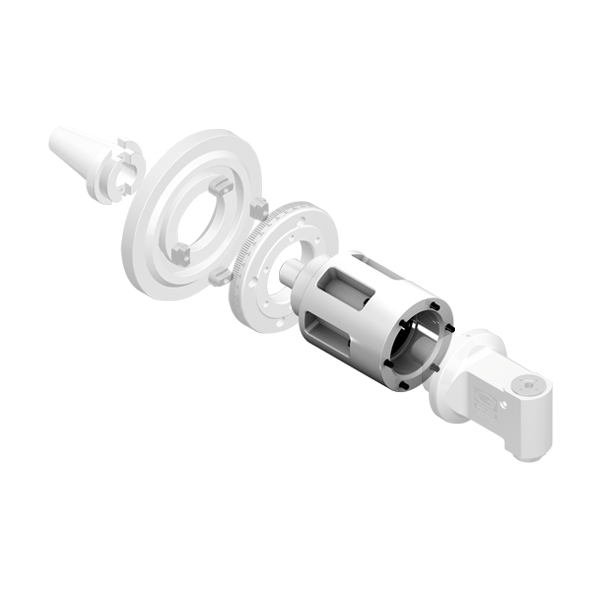

  • ExtensionsExtensions
    On MTC series is possible to extend the lenght of the body by adding an extension.
